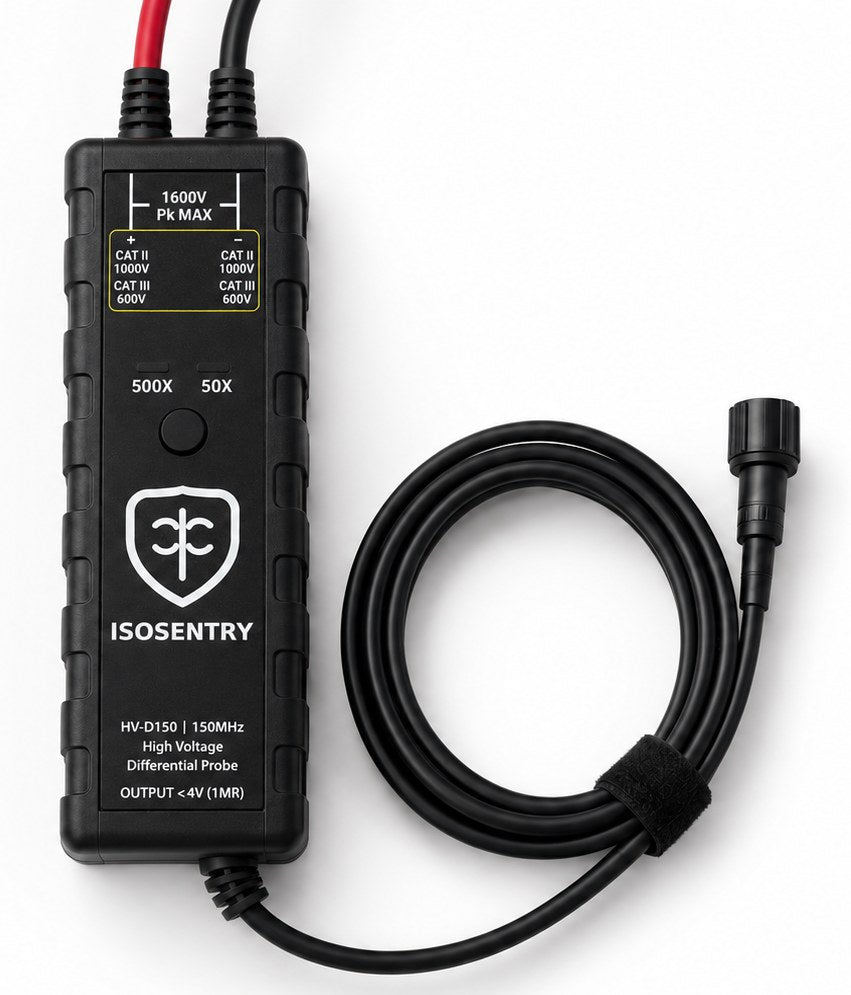

HV-D150 High-Voltage Differential Probe
A 150 MHz high-voltage differential oscilloscope probe with 50X/500X attenuation, isolated USB-C power, and clear measurement limits for power electronics bench work.
Measurement-range limits are not CAT safety category ratings. Review the safety guide before use.
Key specs
Key specs
Six essentials for accurate high-voltage differential measurements.
≥ 150 MHz (-3 dB)
≥ 80 MHz (-0.5 dB)
50X: up to ±180 Vpeak • 500X: up to ±1.6 kV Vpeak (differential input)
Measurement-range limit only; not a CAT safety category.
~200 µVrms (500X, full bandwidth, inputs shorted, scope 1 MΩ)
Each input to ground: 8 MΩ || 3 pF
Diff: 16 MΩ || 1.5 pF
50X / 500X attenuation
USB-C 5 V (isolated), ~1.1 W typ, ≤ 1.3 W max (measured)
~1.8 kV Vpeak (tolerance ~1.75–1.85 kV)
Evidence
Representative measurement highlights, documentation anchors, and safety notes for HV-D150.
Bandwidth verification
Representative bandwidth plot and verification method.
Noise floor measurement
Low noise floor characterization with measurement setup.
Isolation & safety design
Isolation barrier, protection design, and safety limits overview.
FAQ
Answers to common questions about HV-D150.
Is it isolated?
Yes. USB-C power is internally isolated. Always follow safety limits.
What’s the bandwidth?
Bandwidth (-3 dB): ≥ 150 MHz. Bandwidth (-0.5 dB): ≥ 80 MHz.
Max voltage?
Max differential input (measurement range, Vpeak): 50X up to ±180 Vpeak / 500X up to ±1.6 kV Vpeak (differential input). This is a measurement-range limit, not a CAT safety category. Over-voltage alert (buzzer/LED): ~1.8 kV Vpeak (tolerance ~1.75–1.85 kV).
