IS-CLP-01
Insulated Wide-Jaw Alligator Clip
Larger insulated alligator clip pair with wide jaws for heavier terminals and leads.
- Pair weight
- 16.2 g/pair
- Rating
- 1000 V / 32 A
HV-D150

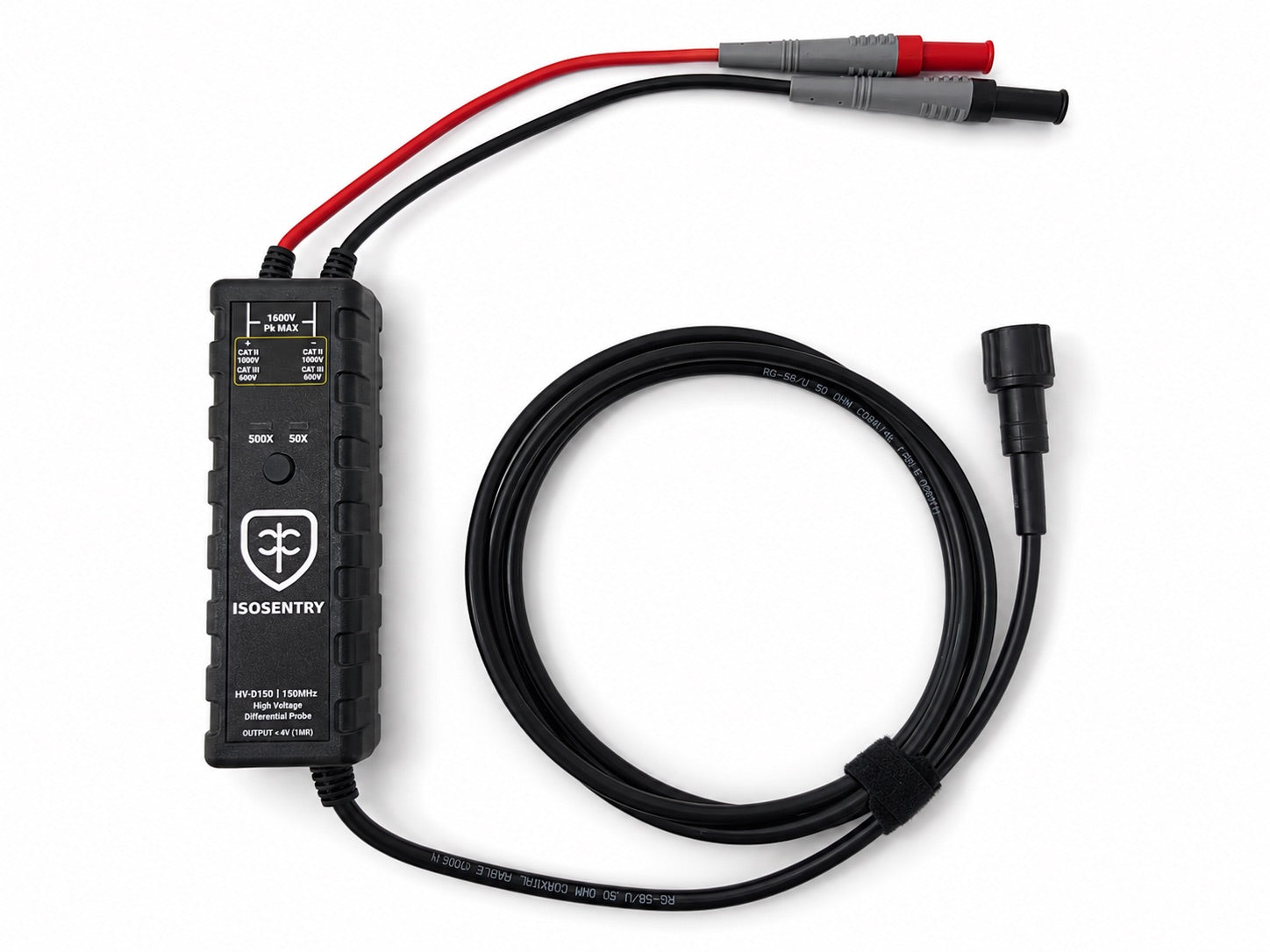

HV-D150 High-Voltage Differential Probe
HV-D150 is a high-voltage differential probe for power electronics—fast response with low loading.
- Bandwidth: 150 MHz (-3 dB)
- Attenuation: 50X / 500X
- Max differential input (Vpeak rated): 180 Vpeak (50X) / 1600 Vpeak (500X)
- Over-voltage alarm: 1800 Vpeak nominal (tolerance: 1750–1850 Vpeak)
- Input impedance: 8 MΩ || 3 pF (each input to ground) / 16 MΩ || 1.5 pF (differential)
Safety: The over-voltage alarm is a warning only—disconnect immediately if it triggers.
HV-D150
Sale price$299.00
Regular price$399.00
Included accessories
Five IS-CLP test clip accessory pairs
HV-D150 ships with five interchangeable red/black test clip accessory pairs for common bench measurement setups.
IS-CLP-02
Quick Test Hook Clip
Long hook-style clip pair for grabbing narrow leads, pins, and terminal points quickly.
- Pair weight
- 23.0 g/pair
- Rating
- 1000 V / 10 A
IS-CLP-03
Needle Test Probe Tip
Straight needle-tip accessory pair for precise contact on pads, pins, and test points.
- Pair weight
- 47.2 g/pair
- Rating
- CAT II 1000 V
IS-CLP-04
Insulation-Piercing Hook Clip
Insulation-piercing hook clip pair for temporary checks on insulated conductors.
- Pair weight
- 12.7 g/pair
- Rating
- CAT II 1000 V / max 10 A
IS-CLP-05
Safety Hook Clip (4mm)
Guarded 4mm safety hook clip pair for controlled hook-style connections.
- Pair weight
- 29.8 g/pair
- Rating
- 1000 V CAT III / 600 V CAT IV / 10 A
Accessory ratings are supplier-declared; IsoSentry has not independently verified them.
Dimension references
HV-D150 and IS-CLP dimensions
Reviewed dimension reference images for the HV-D150 probe body, BNC cable, and included IS-CLP-01 to IS-CLP-05 test clip accessory pairs.
Dimension references are provided for setup planning; accessory ratings are supplier-declared.
